Flannelette Raising Needle — Fork Needle

Short Description:

Fork needles, like triangular needles, also have single, double, multiple, and tapered working segments. At the front of the forked working section, there are forks like harpoons, which are compression moulding forming and composed of multiple curved surfaces. Changing the direction of the forks can make the fabric obtain suede effect or ring stripe effect.used primarily in the automotive interface, carpet, and apparel fields.

Selection range

• Needle size: 25, 30, 38, 40, 42

• Needle length: 63.5mm 73mm 76mm

• Other shapes of working parts, machine number, barb shape and needle length can be customized

Send email to us

Product Detail

Product Tags

Product Description

Quick Details

Product name: Felting needles
Warranty: 1.5 years Applicable
Brand Name: YUXING
Use: NEEDLE LOOM
Type: NEEDLE BOARD
Production capacity: 600 million

Condition: New
Raw material: HIGH CARBON STEEL
Place of Origin: Zhejiang, China Brand
Application: For Needle nonwoven fabric
Packing: Well packed from water and damage

Packaging & Delivery

MOQ: 10000pcs
Selling Units: Multiple of 10000
Package size per batch: 32X22X10 cm
Gross weight per batch: 12.00 kg
Package Type: 500pcs into 1 plasitc box, then 10000pcs again into 1 carton box

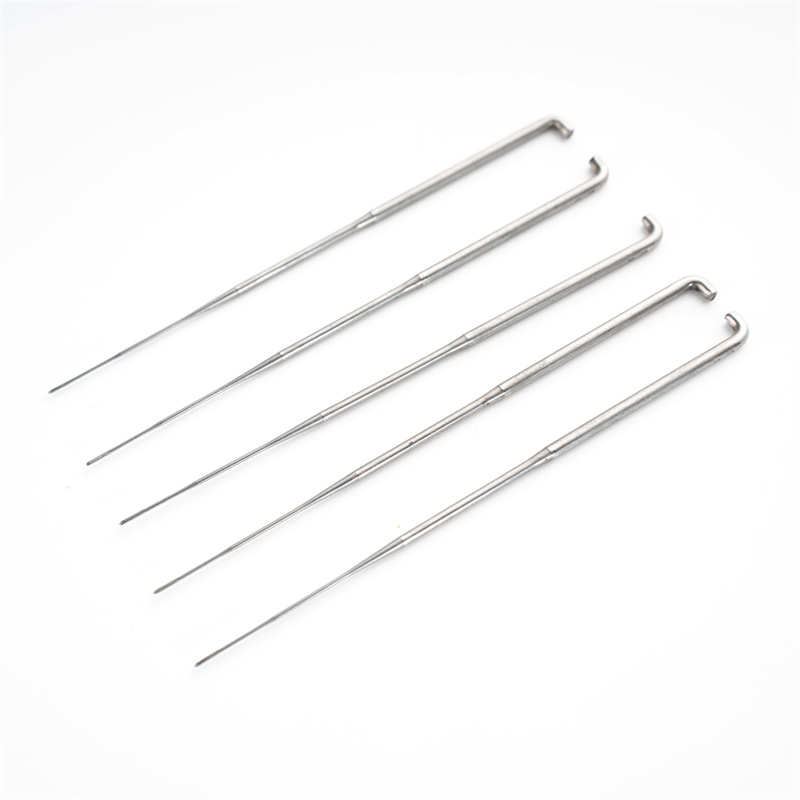

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 500000	>500000
Est. Time(days)	10	To be negotiated

Products Show

Product Description

Gauges and diameters of Felting Needles

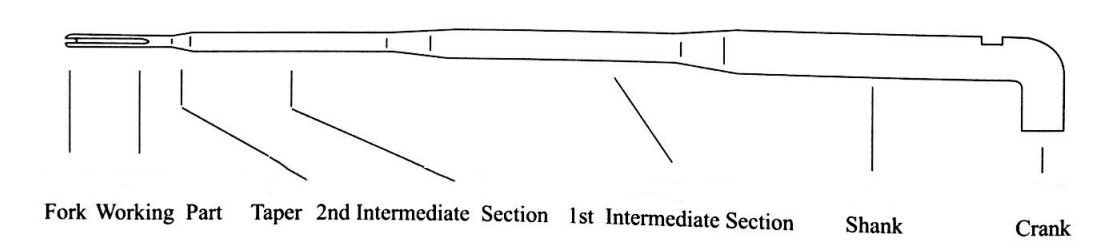

product-description1

Gauge	working part (mm)	2nd Intermediate Section (mm)	1st Intermediate Section (mm)	Shank
15				1.83
16	1.55
17	1.35		1.35
18	1.20		1.20
19	1.10		1.10
20	0.95	0.95	0.95
22
23
25	0.80	0.80	0.80
26
28
30	0.70	0.70
32	0.65	0.65
34
36	0.55	0.55
38	0.50	0.50
40	0.45
42	0.40
All diameters of the parts designation on a fork needle are expressed in gauges(gg). The smaller the gauge number, the bigger the respective diameter. The various diameters are listed in the chart. All parts of the fork needle, as well as the working part, have a round cross section.

Detailed parameters of the felting needle
Product name	Quadro Needles
texture	high-carbon steel
colour	bright nickel white
Nominal length	76.0mm
	66.5mm
	65.0mm
	63.5mm
	62.0mm
	In the fork needle description, the nomianl length is given in milli-meters(mm). The most common nominal length is 63.5mm or2." From this dimension there are increasment of 1.5mm lor longer or shorter needles, which are used for deep patterning designs. In addition to these needles, there are also needles available with anominal length of 76mm or3". The drawings of the needles specify the nominal length or the fork needle.
Standard working part lengths on fork needles	5.5mm
	8.5mm
	13mm
	14.5mm
	15.5mm
	17mm
	The working part length is determined by the required stability and penetration depth of the needles used. Various types from single reduced to multi reduced needles are available. On fine gauge multi reduced needles, a short working part length is required. The short working part and the intermediate blade gives the needle the necessary stability and minimizes the widening of the fabric.

Application field

Nonwovens are a class of materials in which fibers are bonded together by high temperature, chemical or mechanical means. Among them, mechanical bonding requires the use of needles as tools. In the process of mechanical bonding, the fibers are passed through and entangled into the fabric through the needles with burrs, which improves the friction between the fibers and increases the bonding effect of the non-woven fabric. Needle making machine is a kind of special equipment, and a large number of needles are housed in its dial. The needles pass through the nonwoven in a prescribed direction, intertwining the fibers together. Needle making machines are mainly used in the production of geotextiles, filter cloths, filter bags, artificial leather, disposable carpets, automotive interiors, handmade wool, pure cotton, bra cotton and other products that have surface requirements. To sum up, mechanical needle making is a technology that bonds fibers together, which can enhance the bonding effect of non-woven fabrics. Needle making machines are special equipment used to realize this process, and are widely used in the production of many products that require surface requirements.

Automotive Interior

Soundproof Cotton

Artificial Leather

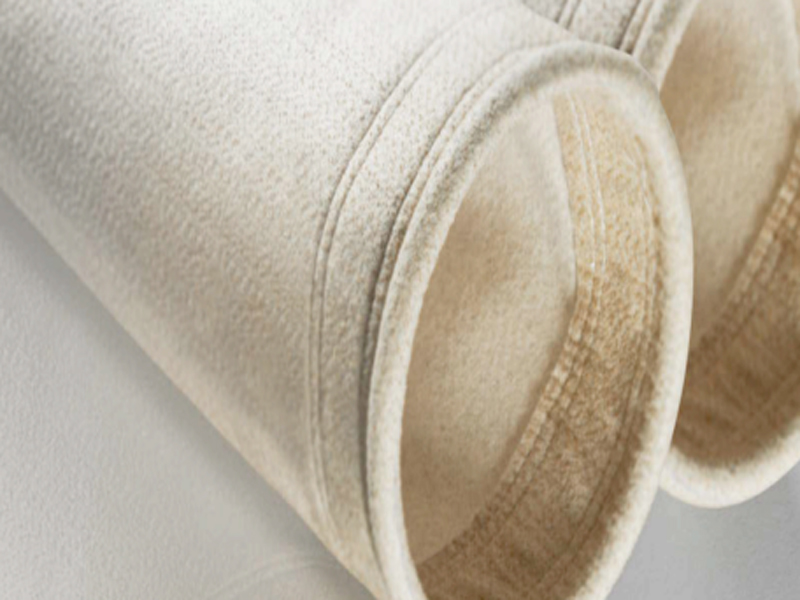

Filter Bag

Linoleum Machine

Cloth Geotextile

Filter Cloth

Car Cloth

Disposable Carpet

Features

•The needle handle has one or more tapering cones, and the working part is cylindrical
•Three-dimensional rounded forks
•V-shaped or D-shaped crosses

Advantages

•Gently hook fiber for longer service life
•Needle body is extremely straight and does not break or bend the needle
•The appearance of the fabric is affected by the V-shaped and D-shaped crosses
•High uniformity in structured machining
•Distinctive coils (grain texture)
•Efficient fiber processing capability for extremely dense surface quality
•High processing reliability, excellent product quality
•The cross section of the working area is extremely fine, with the best surface quality (smaller funnel groove)
